INSIDE 80 SQ

INSIDE 80 SQ

Price on demand

High output Square plaster-in downlight with minimal visual impact. Indoor and outdoor use for a total integration with architecture

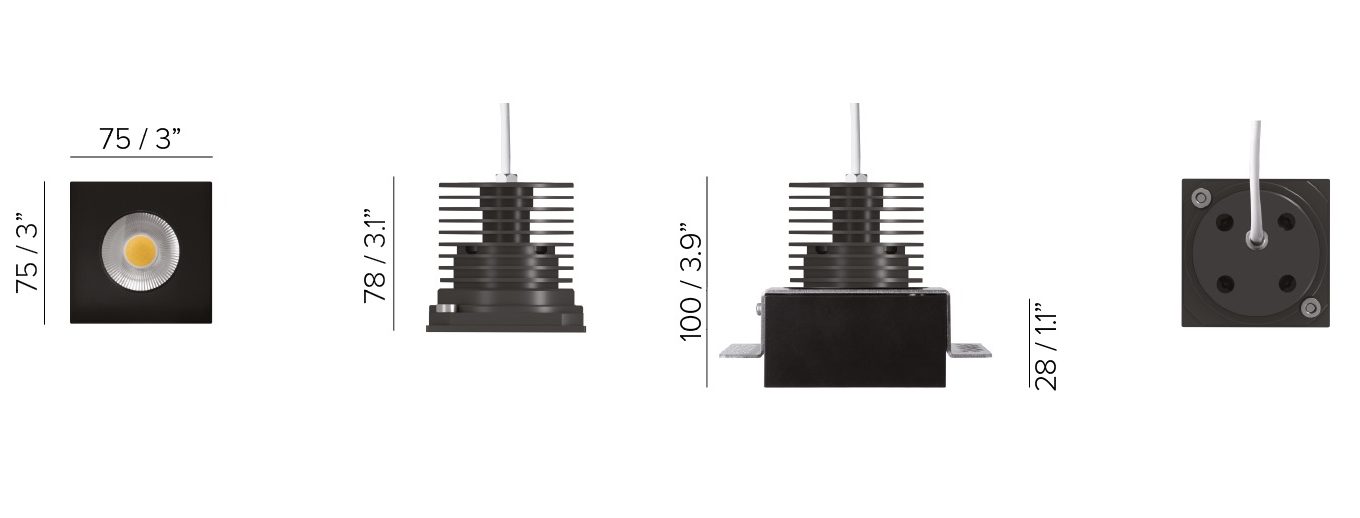

  • Dimension: 3.2”X3.2”
  • Completely trimless luminaire with recessed LED position and option of black internal reflector cup for minimal glare
  • Mounting frame to be separately ordered. Upon request mounting frame for plasterboard of different thickness
  • Features a selection of different optics: 28°, 38°, 50° with softening lens
  • Available in colour temperatures of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Lamp wattage: 12W at 48V DC and 350 mA
  • 48V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to 140°F
  • Dimming available in Phase or 0-10v, other dimming options available upon request.
  • Suitable for dry location
  • Standards: UL 2108, CSA C22.2

Spec Sheet

Choose options

*Please note: Colour swatches are for reference only and may not exactly match the final product

Shipping delay : On request
