Thermal Performance

• Cast aluminum heat sink ensures optimal heat dissipation and LED life.

LED Optics

• TIR lens for fixed CCT options, and a multifaceted reflector with integrated soft lens for Medium (36°) and Wide Flood (55°) beam angles. Optic holder can accommodate up to two additional optic media options. All beam angles other than spot are field exchangeable.

LED Characteristics

• Fixed CCT high power Bridgelux® LED chips maintain uniform intensity with a typical 90 or 95 CRI. 3-Step MacAdam ellipse binning. Dim-to-Warm (3000-1800K) and White Tunable (2700-5000K) are also available. White tunable requires an additional 0-10V signal to the driver to control CCT.

Optical Control

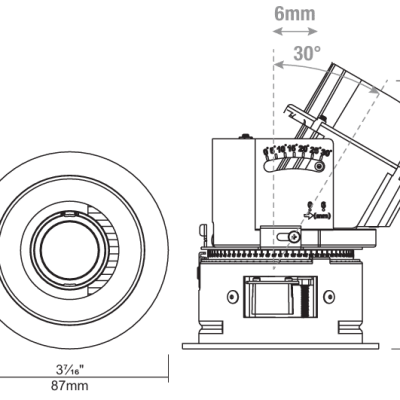

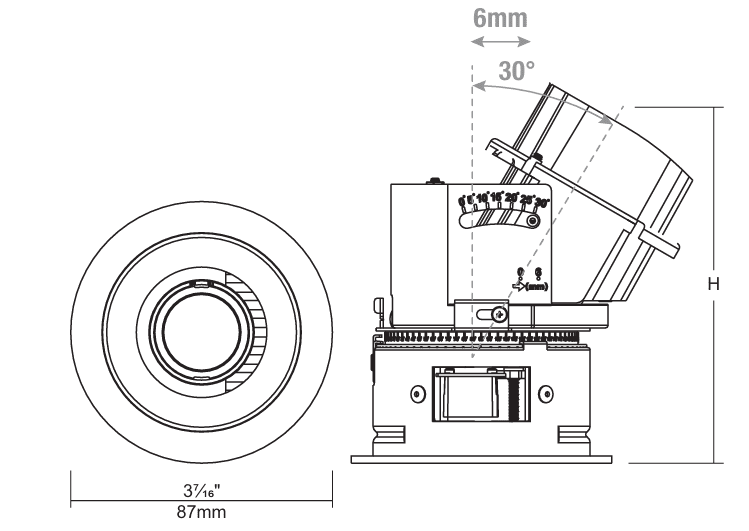

• Mechanical tilt of 30°, optical tilt up to 20° with light bending lens, and rotation up to 365°. A horizontal drift of 6mm can be used to eliminate cut-off when f ixture is tilted. Tilt, drift and rotation are adjustable below the ceiling. Tilt angle can be factory set, and spring tension will maintain angle through installation. The light source can be adjusted between three height settings to achieve max light output or max comfort for quiet ceilings.
