Features:

Single Circuit Power Distribution System
2-Circuit power distribution system designed to supply lighting unit flexibly.
With two (2) hot conductors and one common neutral, each circuit is rated 20A (2 × 20A = 40A max) at 120V.
Each circuit allows the control of two individual sets of fixtures, thus enabling the use of two separately switched circuits on one section or run.

Extrusion

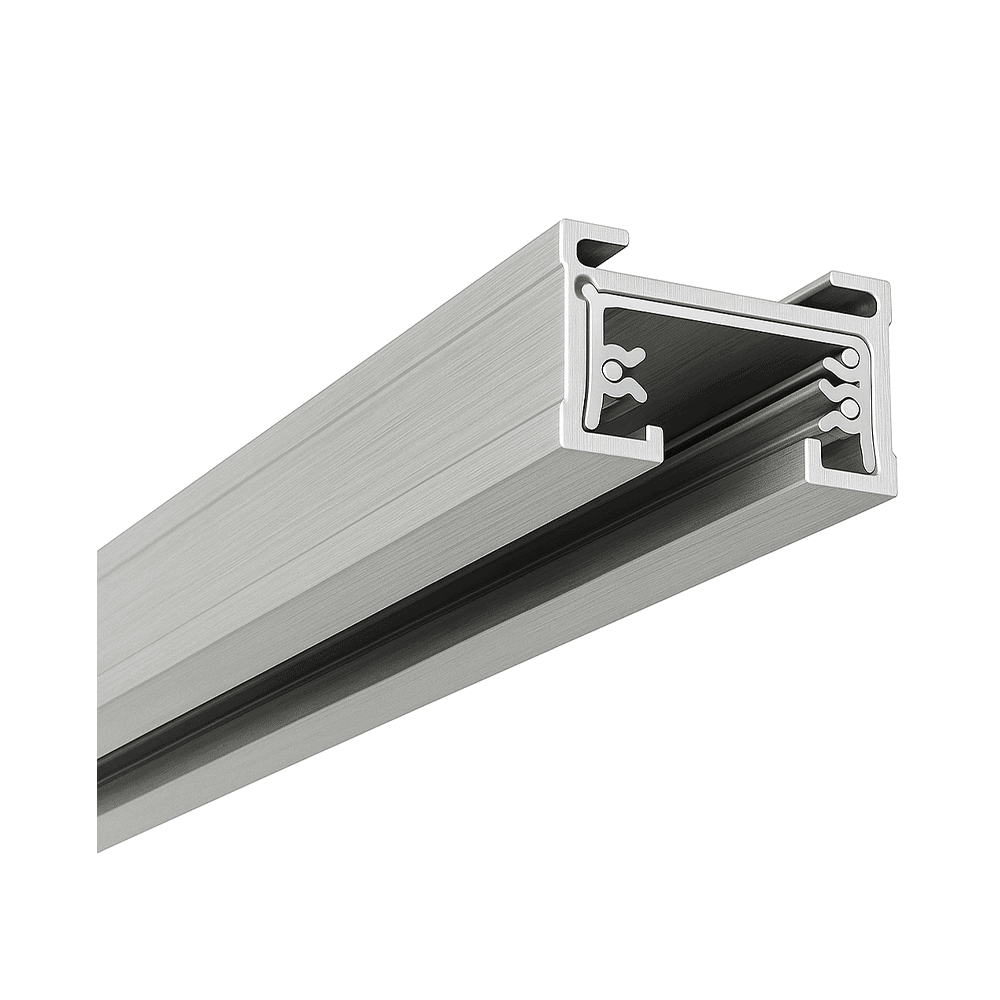

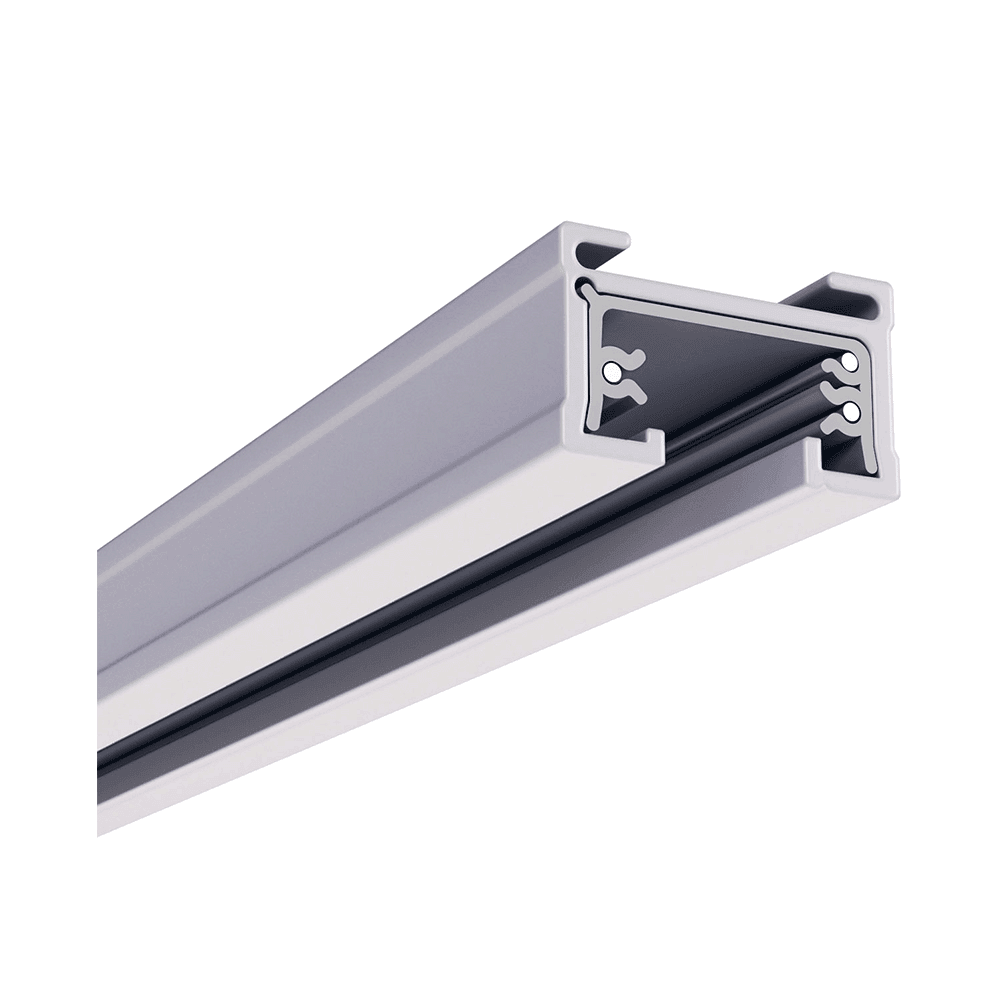

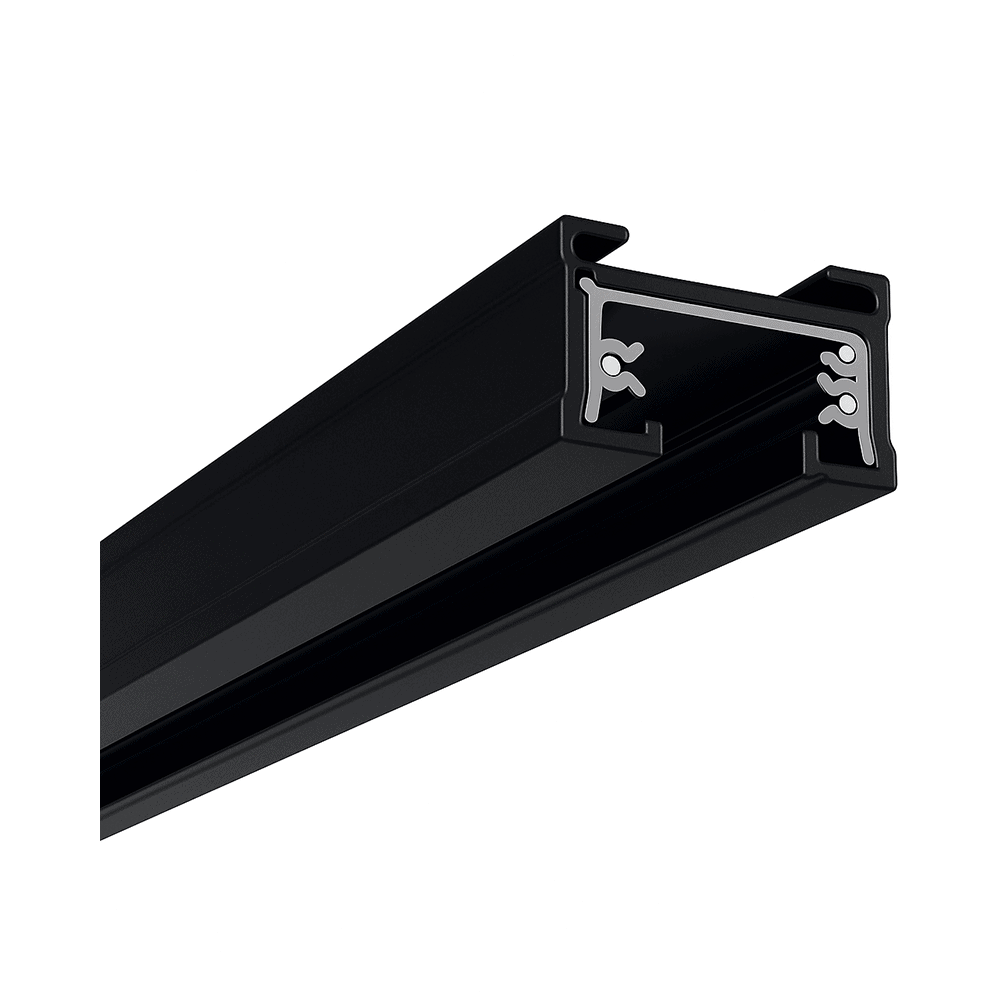

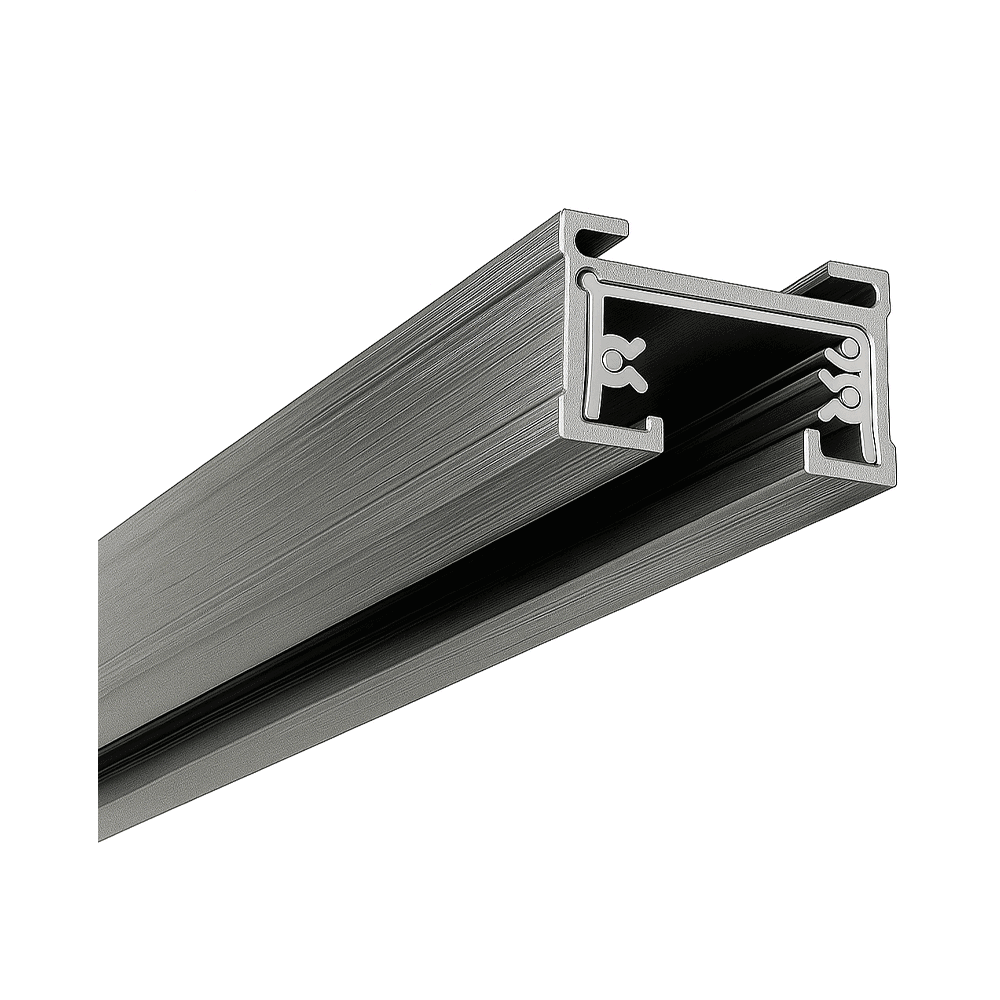

• Constructed of 0.06″ extruded aluminum with 0.045″ PVC bus bar support holding 12 gauge round bus bars. Polarity groove is located on face of track to indicate location of grounding conductor.

Electrical

• 2-Circuit power distribution system designed to supply lighting unit flexibly. With two (2) hot conductors and one common neutral, each circuit is rated 20A (2 × 20A = 40A max). Each circuit allows the control of two individual sets of fixtures, thus enabling the use of two separately switched circuits on one section or run.

Mounting

• This track is surface mounted using the supplied mounting hardware.

Compatibility

• Track system is compatible with all A-Line® and Juno® style track fixtures, accessories and connectors.

Labels

• cULus listed.
