5100 PROFILE

Price on demand

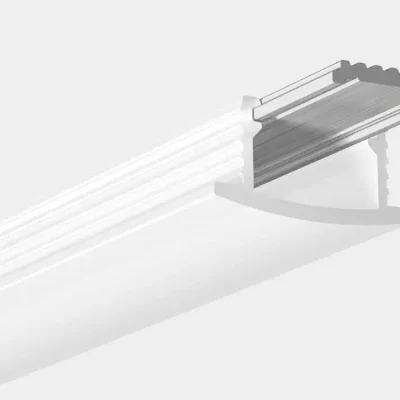

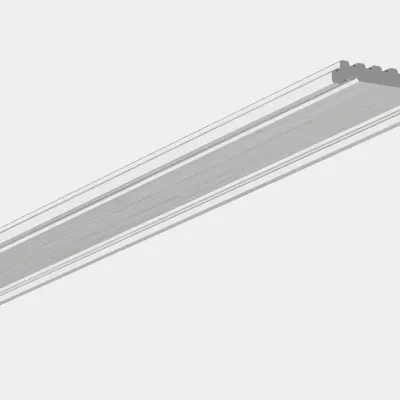

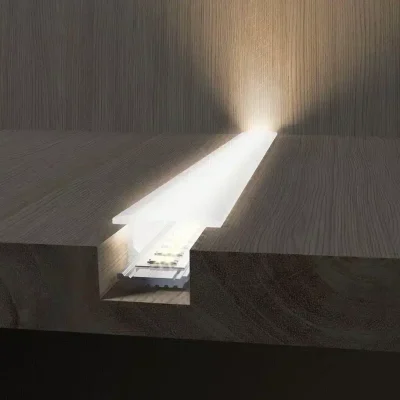

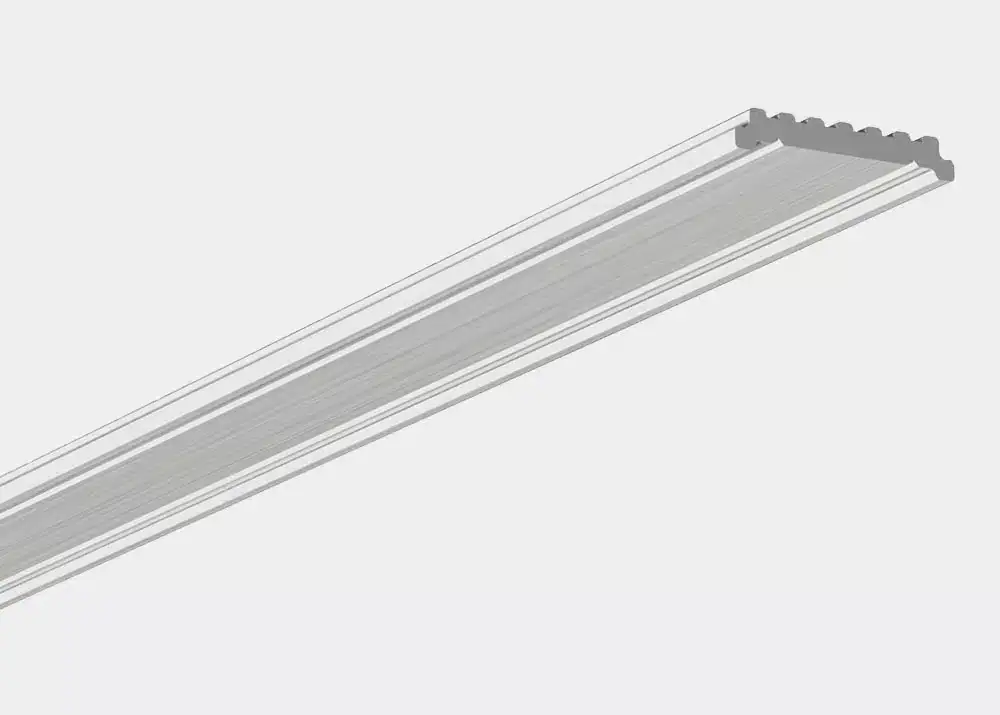

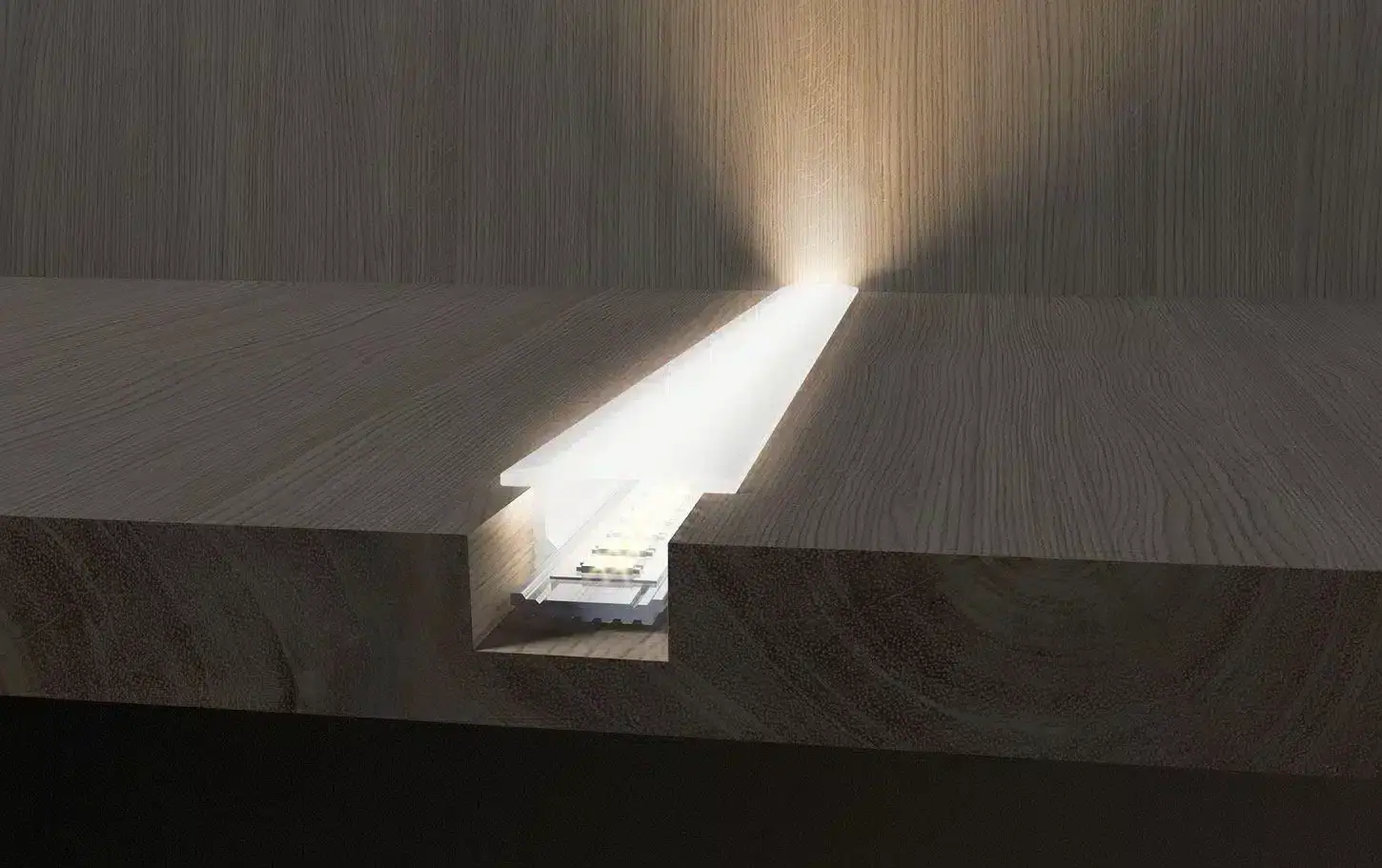

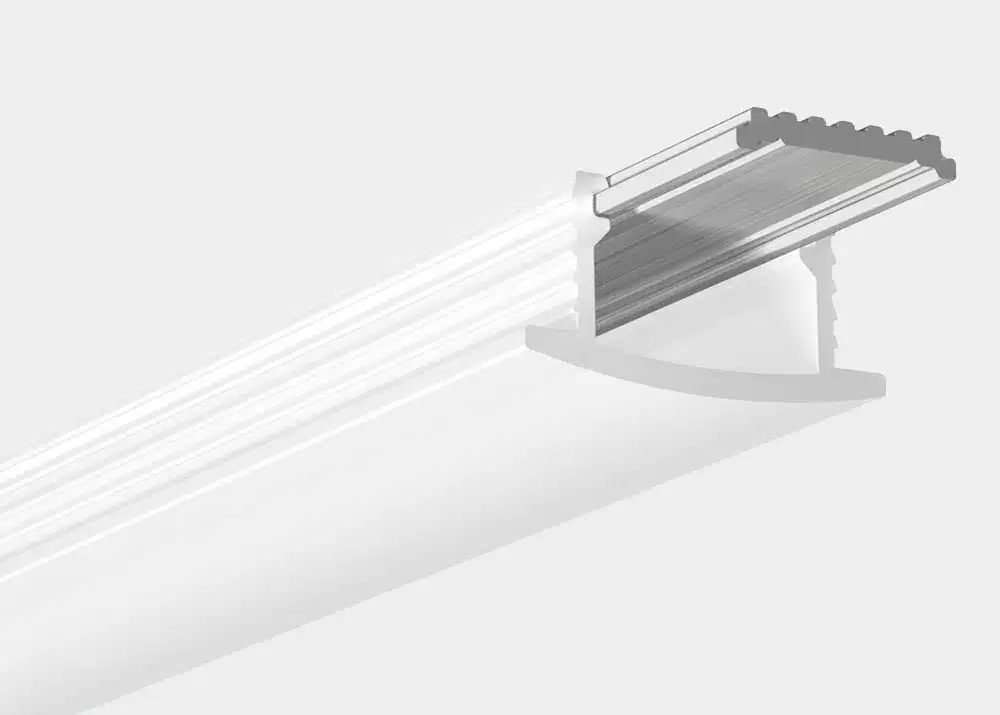

The 5100 consists of an aluminum heatsink base inserted into a flexible recessed lens with gripping sides. It allows for a very simple installation, with the assembly inserted into the recess and staying in place due to the gripping ribbed lens sides. The 5/8” wide and 3/8” deep recess is…

Features:

  • Designed to give a uniform light without hot spots with the opal round lens*.
  • The 5200 (round) lens has a 0.31 inch (8mm) wall offset, while the 5300 (flanged) lens stands out only 1/10″ (2.5mm).
  • The LED heatsink base is made of aluminum for improved heat dissipation.

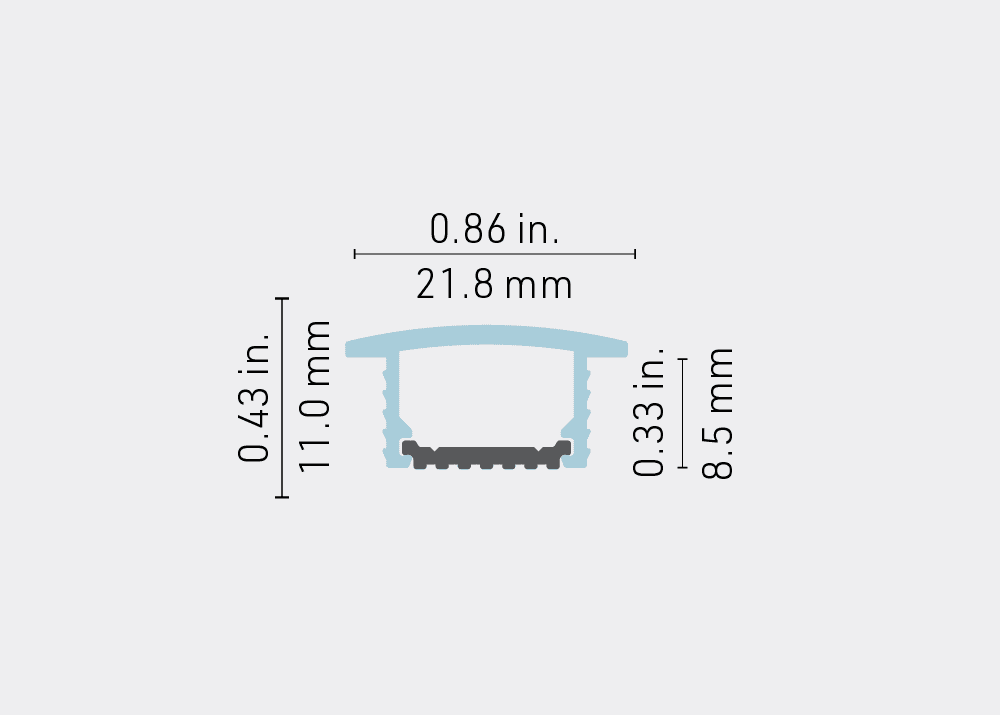

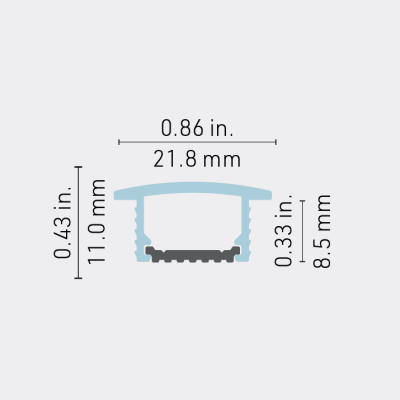

  • The recess hole should be 5/8″ (15.9mm) wide and 8.5mm (3/8 inch) deep minimum.
  • Custom length by sections of 96 inches (2.44m).
  • Application guide for 10mm (3/8 inch) LED engine or less.
  • Designed to meet North American woodworking standards.

Spec Sheet

Choose options

*Please note: Colour swatches are for reference only and may not exactly match the final product
